A cleaner virtual cockpit retrofit for the Audi A5 B8 dashboard.
This 12.3-inch LCD digital instrument cluster upgrades the Audi A5, S5 and RS5 B8 dashboard from an aging analog gauge layout to a sharper, factory-style digital driving display.
Before shipment, iKAGOO checks your vehicle year, dashboard layout, LHD/RHD position and connector configuration so the correct screen, wiring harness and vehicle interface can be prepared for your order.
Respuesta rápida
This iKAGOO upgrade is a vehicle-specific Audi A5 B8 Virtual Cockpit Retrofit for Audi A5, S5 and RS5 2008–2016 models. It replaces the original analog-style instrument cluster with a 12.3-inch LCD digital cluster while keeping important driving information in front of the driver. Supported original functions such as steering-wheel control, MMI control, vehicle data, warning information and reverse-camera display continue to work after correct installation and configuration. Before shipment, iKAGOO checks your vehicle year, dashboard layout, LHD/RHD position and connector photos to prepare the correct version. It is suitable for owners who want a modern OEM-style dashboard upgrade instead of only repairing the old factory cluster.
Why this Audi A5 LCD instrument cluster is worth upgrading
The B8-generation Audi A5 still has a strong exterior and a premium cabin, but the original analog gauge cluster makes the car feel older than it drives. This upgrade gives the dashboard a cleaner digital layout while keeping the interaction logic familiar.
Cuadro de instrumentos digital moderno
Replace the old gauge look with a 12.3-inch LCD screen that makes speed, RPM, fuel, warnings and driving information easier to read.
OEM-style fitment
The cluster shape is built for the Audi B8 dashboard architecture, so the upgrade looks integrated instead of like a universal add-on.
Factory function focus
Supported driving data, steering-wheel controls, MMI control and warning information remain part of the daily driving experience.
Three UI styles
Classic, Sport and Vogue display styles let you match the cluster look to your driving preference without changing the dashboard structure.
Sistema Linux estable
The product uses a Linux system and T507 4-core processor for a focused instrument-cluster experience, not a heavy Android head unit interface.
Prepared before shipment
iKAGOO checks your vehicle details before dispatch to reduce wrong-version orders and help match the correct harness and interface.
Compatible con las funciones originales del vehículo
When the vehicle is within the supported Audi A5 B8 range and the correct version is installed and configured, these factory-related functions are designed to continue working.
- ✓Son compatibles los mandos originales del volante.
- ✓MMI knob control is supported for cluster interaction.
- ✓Fuel, speed, mileage and driving data continue to be displayed.
- ✓Door status, oil temperature and warning information are supported where available from the vehicle.
- ✓OEM backup camera display is supported after correct connection and configuration.
- ✓Phone navigation projection can be displayed when the supported input path is connected.
- ✓The matched harness is designed for non-destructive installation on supported factory wiring.
- ✓LHD and RHD vehicles can be matched before shipment.
Special factory audio systems, previous aftermarket modifications, non-standard cameras or uncommon regional configurations may require additional connection instructions. Provide vehicle photos before shipment so iKAGOO can prepare the correct version.
Prepared for your vehicle, not just packed from a shelf
A digital cluster is not a universal phone mount. The correct version depends on vehicle year, dashboard architecture, factory system, connectors and regional configuration. iKAGOO’s value is in matching the product to the vehicle before it ships.
Preparación específica para cada vehículo
We check your Audi A5 B8 year, dashboard photo, original cluster type and connector layout before preparing the order.
Harness and interface matching
The screen, wiring harness and vehicle interface are matched to reduce wrong connection risk and unnecessary installation delays.
Protección del cableado original
The supported installation direction is non-destructive: no intentional cutting, drilling or soldering of the supported factory main wiring.
Function configuration support
After installation, iKAGOO can help with setup questions related to display mode, controls, vehicle data and supported camera display.
garantía de hardware 12-month
Eligible hardware issues are covered by iKAGOO’s 12-month limited hardware warranty under the applicable warranty policy.
Better than blind low-price buying
A cheaper listing may not solve connector, control or vehicle-data questions. For this type of upgrade, matching matters more than price alone.
Three practical checks before buying
These results are written to help buyers decide whether this upgrade fits their vehicle and installation ability.
Necesidad de actualizar iKAGOO
The Audi A5 B8 is still visually desirable, but the original analog cluster dates the cabin. A 12.3-inch LCD cluster gives a strong daily-use improvement for owners keeping the vehicle long term.
View the Upgrade Necessity StandardCompatibilidad con el vehículo original
Designed for supported Audi B8 dashboard architecture with retained controls, driving data and warning display. A score of 88/100 does not mean that 12% of factory functions are lost.
View the Original Vehicle Compatibility StandardDificultad de instalación
Suitable for experienced DIY installers or automotive electronics installers. It requires dashboard trim removal, original cluster removal, harness connection, configuration and full function testing.
View the Installation Difficulty StandardProduct photos and feature views for the Audi A5 B8 cluster upgrade
Only relevant product, installation, interface and function images are used below. A6/A7, Q3/A3/TT, generic logistics and unrelated Android head-unit materials are not included.
12.3-inch cluster body for the Audi B8 dashboard
The front view shows the wide digital cluster shape that replaces the original gauge assembly while keeping the cockpit focused on driving information.
Before-and-after dashboard change
The upgrade keeps the Audi steering-wheel view familiar while replacing the older analog-style display with a cleaner digital instrument layout.

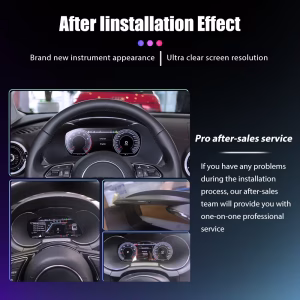

Installed dashboard effect
After installation, the cluster sits inside the original dashboard zone and gives the driver a broader, more modern visual display without changing the entire center console.

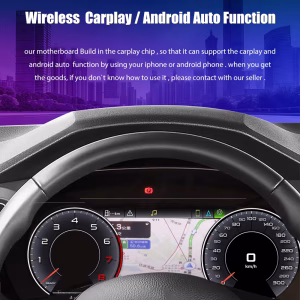

Navigation view in front of the driver
When the supported projection path is connected, navigation information can be shown directly in the driver’s line of sight, reducing the need to look away from the road.
Plug-style harness and control accessory
The included harness and control accessory help the cluster communicate with the supported vehicle system while protecting the factory wiring from unnecessary modification.
Rear housing and connector area
The back of the cluster is important for installation planning. iKAGOO checks connector photos before shipment so the correct connection direction can be prepared.
Front assembly with harness before installation
This view helps buyers understand that the upgrade is more than a bare screen. The cluster body, harness and control interface must be matched as a complete vehicle-specific set.
Non-destructive installation direction
For supported Audi B8 vehicles, the installation direction is designed around matched connectors rather than cutting or soldering the factory main wiring.

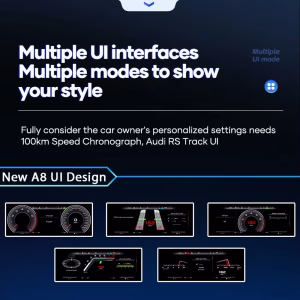

Multiple UI modes for different driving styles
Classic, Sport and Vogue-style interfaces give the driver several visual choices while keeping key driving information clear and easy to read.
Clean speedometer and dial-style display
The digital dial layout keeps the familiar Audi driving feel while making information easier to scan at a glance during daily driving.
Vehicle data and warning display
The display is designed to keep supported vehicle information visible, including driving data, warning indicators and status information available from the vehicle system.
Screen comfort for longer driving
The IPS LCD screen and anti-glare design help the cluster remain usable in daily driving, night driving and longer trips.
Audi A5 B8 LCD instrument cluster specifications
| Tipo de producto | Reacondicionamiento del cuadro de instrumentos digital / cuadro de instrumentos LCD / Virtual Cockpit |
|---|---|
| Main compatible vehicle | Audi A5 / S5 / RS5 B8, Type 8T / 8F, 2008–2016. Coupe, Sportback and Cabriolet versions should be confirmed by dashboard and connector photos before shipment. |
| B8-family note | This hardware family is also listed for matching Audi A4 / S4 / RS4 B8 2009–2016 and Audi Q5 / SQ5 8R 2009–2017 configurations. This page focuses on Audi A5 buyers. |
| Not compatible | Not for Audi A5 B9 / Type 8W vehicles. Do not order only by badge name; confirm generation, model year, dashboard layout and connector configuration. |
| Pantalla | Pantalla LCD IPS de 12,3 pulgadas |
| Resolución | 1920×720 |
| Sistema | Sistema Linux |
| Procesador | T507, 4-core, 1.5GHz |
| Display styles | Classic / Sport / Vogue UI styles |
| Controles | Supported steering-wheel buttons and MMI knob control after correct installation and configuration |
| Datos del vehículo | Fuel, oil temperature, door status, tire pressure, warning information, mileage and driving information where supported by the vehicle configuration |
| Camera display | OEM backup camera display is supported after correct connection and configuration |
| Potencia | 12V DC, 0.8A–1.5A working current, standby current below 3mA |
| Operating temperature | -30°C a +85°C |
| Installation reference level | Level 3 — Advanced DIY. Experienced DIY or automotive electronics installer recommended. |
Which option makes sense for your Audi A5 B8?
A buyer usually compares three choices: keep repairing the old cluster, buy a used OEM cluster, or upgrade to a modern digital cluster. The best choice depends on whether you only need a repair or want the cabin to feel newer.
Reparar el cuadro de instrumentos antiguo
- ✓Lower cost when the issue is simple
- ✓Keeps the original analog look
- ✓No dashboard style upgrade
Cuadro de instrumentos OEM de segunda mano
- ✓Good for originality-focused repairs
- ✓May require matching, coding or mileage handling
- ✓Does not modernize the dashboard
iKAGOO digital cluster
- ✓12.3-inch LCD virtual cockpit-style display
- ✓Vehicle-specific harness and interface preparation
- ✓Retains supported vehicle data and controls
- ✓Better choice if you want a visible interior upgrade
Help iKAGOO prepare the correct version
For the Audi A5 B8 Virtual Cockpit Retrofit, the safest buying process is not guessing by model name only. Send the following information after ordering or before shipment confirmation.
- ✓Vehicle model, year and market region
- ✓Audi A5 / S5 / RS5 body style: Coupe, Sportback or Cabriolet
- ✓LHD or RHD driving position
- ✓Original dashboard and instrument-cluster photos
- ✓Original connector photos behind the cluster if available
- ✓Factory MMI system photo
- ✓Whether the vehicle has factory rear camera or special audio system
- ✓Any previous aftermarket modification history
This information helps iKAGOO prepare the correct screen, wiring harness and vehicle interface. It also reduces the risk of buying a cluster that physically fits but does not match your vehicle configuration.
Installation reference for Audi A5 B8 owners
This is a Level 3 Advanced DIY installation. It is not a simple phone accessory, but it is also not a specialist-only full dashboard reconstruction when the vehicle is a supported Audi B8 configuration.
Typical installation work
- ✓Remove dashboard trim around the cluster area carefully
- ✓Retire el cuadro de instrumentos original
- ✓Connect matched harness and vehicle interface
- ✓Configure display style, controls and vehicle data
- ✓Test warning lights, speed, fuel, mileage, camera and control functions before reassembly
Stop installation and contact iKAGOO if
- ✓The connector shape or pin layout clearly does not match
- ✓A connector pin is bent, damaged or loose
- ✓The harness does not match the supplied instruction direction
- ✓There is abnormal heat, smell, smoke or repeated fuse failure
- ✓The installation would require cutting the original main harness
Clear support after you order
Preparación de pedidos
Vehicle-specific checks are normally completed before shipment so the correct screen, harness and interface can be prepared.
Tracked global shipping
Orders are shipped with tracking. Delivery time depends on destination, customs clearance and carrier conditions.
garantía de hardware 12-month
Eligible manufacturing defects and hardware failures under normal use are covered by iKAGOO’s limited hardware warranty.
Installation help
Support is available for compatible vehicle setup, wiring direction and configuration questions after purchase.
Policy pages
Política de garantía · Política de devoluciones y reembolsos · Compatibility & Installation
After-sales diagnosis
For faster help, provide your order number, vehicle year, dashboard photos, connector photos and a short video of the issue.
Audi A5 B8 Virtual Cockpit Retrofit FAQ
Does this fit Audi A5 2008–2016?
Yes, this page is focused on Audi A5, S5 and RS5 B8 / 8T / 8F models from 2008 to 2016. Confirm your year, body style, dashboard layout and connector photos before shipment.
¿Es una unidad principal con Android?
No, this is a digital instrument cluster / LCD cluster / virtual cockpit retrofit. It upgrades the driver instrument display, not the center Android stereo.
Does it fit Audi A5 B9?
No, this product is not for Audi A5 B9 / Type 8W vehicles. B8 and B9 have different dashboard and electronics architecture.
¿Seguirán funcionando los mandos del volante?
Yes, supported steering-wheel controls continue to work after correct installation and configuration on matched Audi B8 vehicles.
Does it keep vehicle data and warning information?
Yes, supported vehicle data such as speed, fuel, mileage, warning information, door status and other available vehicle signals can continue to display after correct setup.
Does it require coding?
No, the listed product direction is no-coding for supported matching vehicles. However, the vehicle version, connector and configuration still need to be confirmed before shipment.
¿Puedo instalarlo yo mismo?
Yes, if you are an experienced DIY installer. iKAGOO rates this as Level 3 — Advanced DIY because it requires cluster removal, harness connection, configuration and full function testing.
Does it support phone navigation display?
Yes, phone navigation projection is supported when the proper input path is connected and configured. Provide your setup information if you want to use navigation display in the cluster.
¿Qué debo enviar antes del envío?
Send your vehicle model, year, LHD/RHD position, dashboard photo, original cluster photo, factory system photo and connector photos if available. This helps iKAGOO prepare the correct version.
Make your Audi A5 B8 dashboard feel modern again.
Choose the correct configuration and let iKAGOO prepare the 12.3-inch Audi A5 B8 Virtual Cockpit Retrofit according to your vehicle year, dashboard layout and connector configuration.
